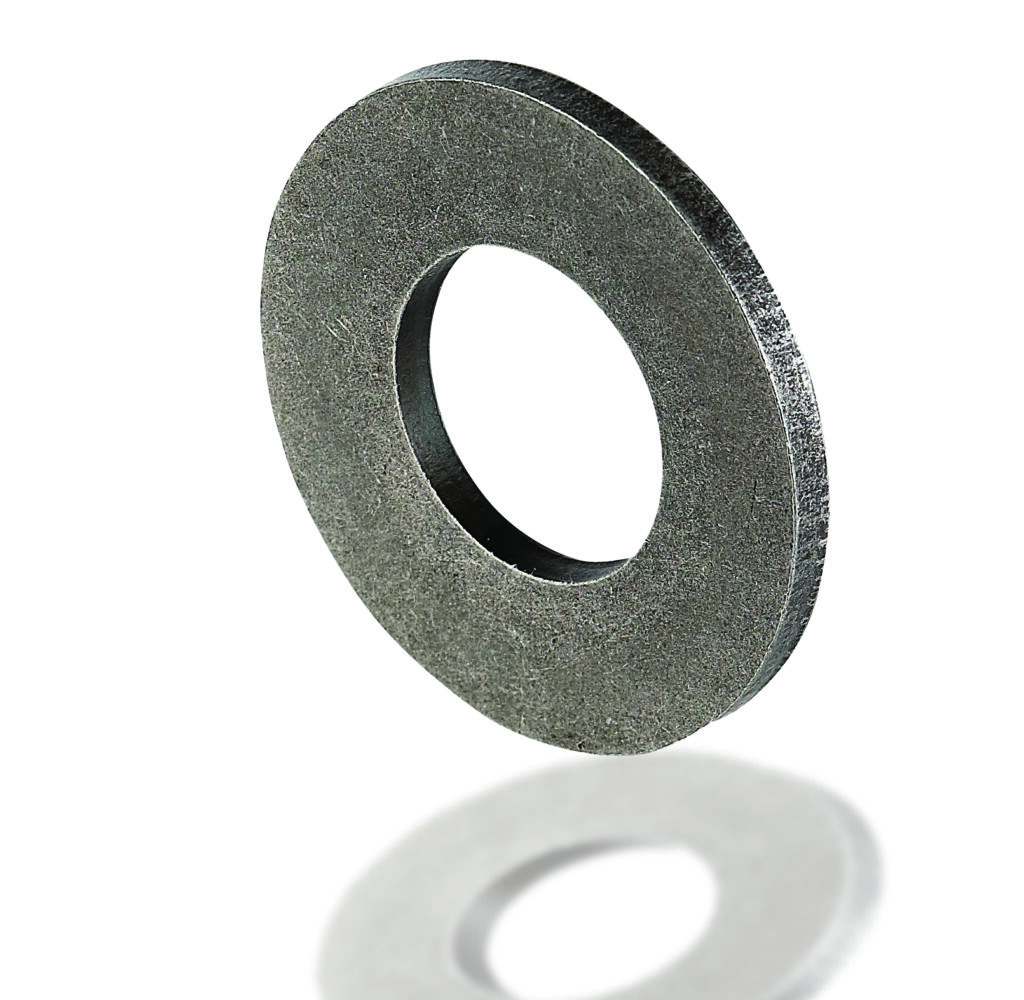

Ball Bearing Bellevilles

Ball Bearing Bellevilles are used to pre-load ball bearings to reduce noise and vibration, and are ideal for absorbing axial end play. These parts can be used to pre-load either the inner or outer ring of ball bearings, and are manufactured in sizes complimentary to a range of standard ball bearing sizes.

Filter By

Bearing OD (in)
Bearing WD (in)
Bearing Thick (in)
Bearing FH (in)
Bearing Material
Part NumberOutside DiameterInside DiameterThicknessFree HeightMaterial
BB-1

0.366

0.228

0.008

0.016

C75S Carbon Steel

BB-10

0.858

0.539

0.014

0.030

C75S Carbon Steel

BB-11

0.933

0.563

0.016

0.035

C75S Carbon Steel

BB-12

1.012

0.563

0.016

0.035

C75S Carbon Steel

BB-13

1.091

0.681

0.016

0.039

C75S Carbon Steel

BB-14

1.110

0.724

0.016

0.043

C75S Carbon Steel

BB-15

1.169

0.685

0.016

0.043

C75S Carbon Steel

BB-16

1.248

0.803

0.016

0.043

C75S Carbon Steel

BB-17

1.362

1.000

0.020

0.047

C75S Carbon Steel

BB-18

1.362

0.803

0.016

0.043

C75S Carbon Steel

Filter By

Bearing OD (mm)
Bearing WD (mm)
Bearing Thick (mm)
Bearing FH (mm)
Bearing Material
Part NumberOutside DiameterInside DiameterThicknessFree HeightMaterial
BB-1

9.30

5.80

0.20

0.40

C75S Carbon Steel

BB-10

21.80

13.70

0.35

0.75

C75S Carbon Steel

BB-11

23.70

14.30

0.40

0.90

C75S Carbon Steel

BB-12

25.70

14.30

0.40

0.90

C75S Carbon Steel

BB-13

27.70

17.30

0.40

1.00

C75S Carbon Steel

BB-14

28.20

18.40

0.40

1.10

C75S Carbon Steel

BB-15

29.70

17.40

0.40

1.10

C75S Carbon Steel

BB-16

31.70

20.40

0.40

1.10

C75S Carbon Steel

BB-17

34.60

25.40

0.50

1.20

C75S Carbon Steel

BB-18

34.60

20.40

0.40

1.10

C75S Carbon Steel
