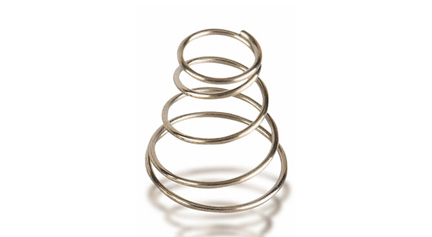

Conical Compression Springs

Stainless Steel, 302, Plain, 0.42 in (10.67 mm) Large Outside Diameter, 0.187 in (4.75 mm) Small Outside Diameter, 0.032 in (0.81 mm) Wire Diameter, Squared, not ground.

Part# : CCS0420-032-0250-S

Designed in a conical shape so that each coil compresses within the other, Conical Compression Springs are able to achieve a much smaller solid height than ordinary compression springs. ASTM A313 are able perform in high temperature environments, up to 500°F.

Product Details

Features in mm
Part Number CCS0420-032-0250-S CCS0420-032-0250-S
Large Outside Diameter 0.420 in 10.67 mm
Small Outside Diameter 0.187 in 4.75 mm
Wire Diameter 0.032 in 0.81 mm
Free Length 0.250 in 6.35 mm
Spring Rate 25.49 lbs/in 4.46 N/mm
Load @ 50% Free Length 3.19 lbs 14.19 N
Load @ Solid Height 4.74 lbs 21.08 N
End Type Squared, not ground Squared, not ground
Material 302 Stainless Steel 302 Stainless Steel
Material Standards ASTM A313 ASTM A313
