Cut to Length Compression.

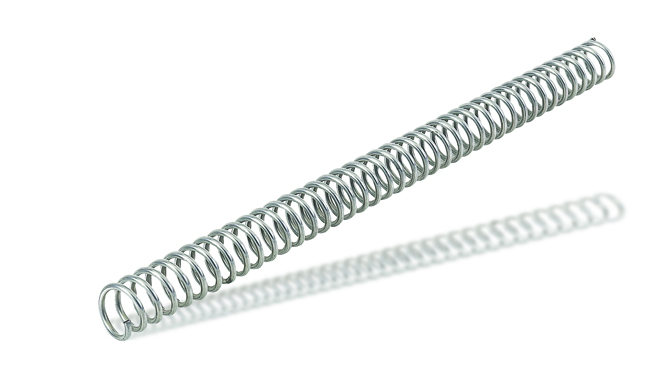

12 inch long “Cut-to-Length” Compression Springs allow the user to cut the springs to the desired length and still be able to make use of the remainder of the part for other applications. Cut-to-Length Compression Springs are available in a variety of Outside Diameters and Wire Diameters, making it easy for someone unfamiliar with spring design to quickly and inexpensively come up with a prototype solution. Spring Rate (in lbs./inch) is determined by dividing the Spring Constant by the total number of coils used once the spring has been cut to desired length.

Cut to Length Compression Group

Filter By

Part NumberOutside Diameter (in)Wire Diameter (in)Length (in)Rate (lbs)Material
8C10C1.3750.12512.005.00HDMB GALV
8C11C0.9640.12112.0014.28HDMB GALV
8C12C0.8440.10612.0011.60HDMB GALV
8C13C0.7320.09212.008.75HDMB GALV
8C14C0.6400.08012.006.60HDMB GALV
8C15C0.5760.07212.005.60HDMB GALV
8C16C0.5000.06312.004.50HDMB GALV
8C17C0.4320.05412.003.00HDMB GALV
8C18C0.3800.04812.002.50HDMB GALV
8C19C0.3280.04112.001.80HDMB GALV
8C20C0.2780.03512.001.30HDMB GALV
8C21C0.2540.03212.001.20HDMB GALV
8C22C0.2290.02912.000.96HDMB GALV
8C23C0.2060.02612.000.85HDMB GALV
8C24C0.1840.02312.000.67HDMB GALV
A17C0.2500.03512.001.70HDMB GALV
A18C0.3750.04112.001.50HDMB GALV
A19C0.5000.04812.001.70HDMB GALV
A20C0.6250.05412.001.40HDMB GALV
