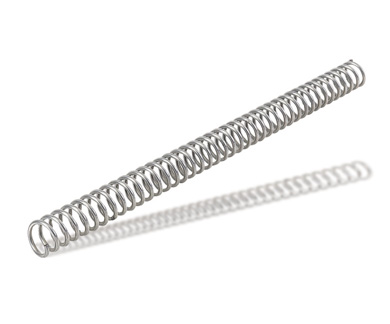

Cut to Length Compression

Part# : 8C24C

12 in (305 mm) long “Cut-to-Length” Compression Springs allow the user to cut the springs to the desired length and still be able to make use of the remainder of the part for other applications. Cut-to-Length Compression Springs are available in a variety of Outside Diameters and Wire Diameters, making it easy for someone unfamiliar with spring design to quickly and inexpensively come up with a prototype solution. Spring Rate (in lbs./inch) is determined by dividing the Spring Constant by the total number of coils used once the spring has been cut to desired length.

Product Details

Features in mm
Part Number 8C24C 8C24C
Outside Diameter 0.184 in 4.674 mm
Wire Diameter 0.023 in 0.584 mm
Free Length 12.00 in 305.00 mm
Rate 0.67 lbs/in 0.12 N/mm
Coils per 12.00 in 0.47 mm
Spring Constant 96 96
End Type open open
Material HDMB GALV HDMB GALV
