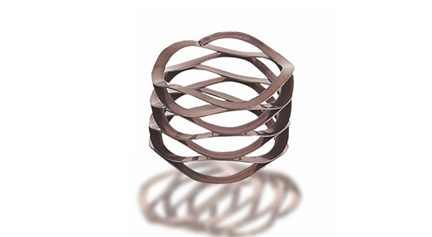

Polywave Compression Springs

Part# : PWC0437-0165-04-S

Designed to fill load and spacial needs in the range between traditional Disc Springs and coiled compression springs, Poly Wave Springs offer loads of up to 25 lbs. with a free height of less than one inch. Poly Wave Springs are made from round edged flat wire that has been pre-tempered. Made from Type 17-7 PH Stainless Steel flat wire, these springs may be used in high heat environments, performing well at up to 650°F.

Product Details

Features in mm
Part Number PWC0437-0165-04-S PWC0437-0165-04-S
Fits in Hole Size 0.437 in 11.10 mm
Fits Over Rod Size 0.281 in 7.14 mm
Thickness 0.008 in 0.20 mm
Free Length 0.165 in 4.19 mm
Load 4 lbs 17.8 N
Deflection @ Load 0.102 in 2.59 mm
Spring Rate 39 lbs/in 6.83 N/mm
Material 17-7 Stainless
