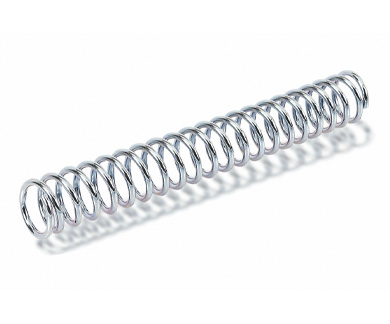

Utility Compression Springs

Part# : C15C

Utility Compression Springs are perfect for light duty, general purpose applications and as replacement parts. Parts are made from High Carbon Hard Drawn Steel and are Zinc Plated. Many parts in this series are also offered in 302 Stainless Steel.

Product Details

Features in mm
Part Number C15C C15C
Outside Diameter 0.313 in 7.94 mm
Wire Diameter 0.0286 in 0.73 mm
Free Length 1.25 in 31.75 mm
Rate 4.54 lbs/in 0.80 N/mm
Solid Height 0.323 in 8.19 mm
Load @ Solid Height 4.21 lbs 18.73 N
Finish Zinc Plated Zinc Plated
End Type Closed Only Closed Only
Material HDMB HDMB
