Curved Springs.

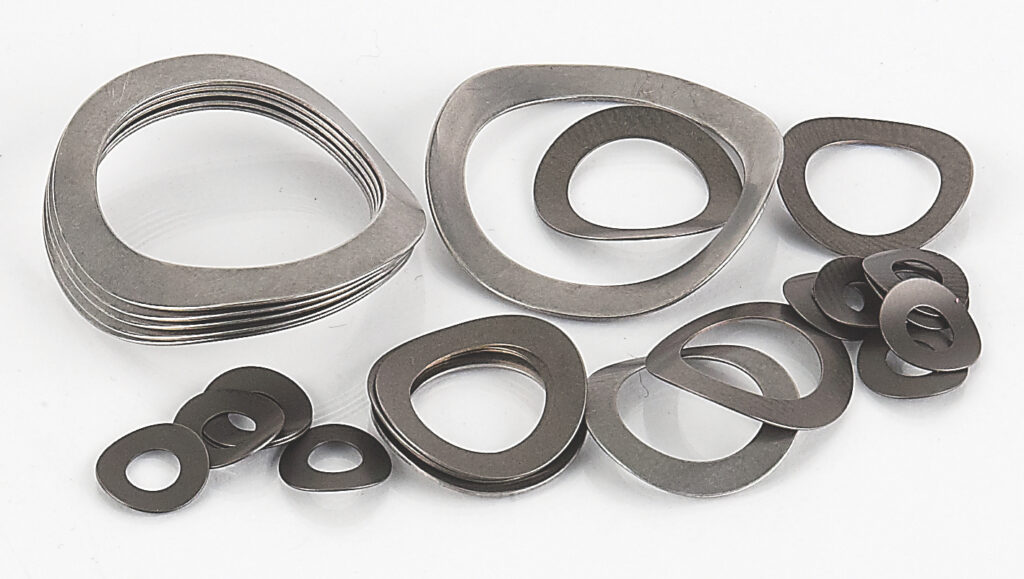

Curved Springs may be used to reduce axial end play. They exert light thrust loads relative to their dimensions and have a nearly linear rate between 10% and 80% of available deflection (deflection should not exceed 80%). Curved Springs have two contact points and Outside Diameter expands under load. Curved Springs are often a solution in situations where Belleville Disc Springs would have too great a load or insufficient deflection. Due to lower stresses, Curved Springs tend to have a longer life cycle and offer greater deflection than Wave Springs. Curved Springs are often the most economical solution and may be used in both static and dynamic applications. Stock parts are available in Carbon and Stainless Steel. Custom sizes and materials are available upon request.

MU-Curved Group

Filter By

Part NumberOutside Diameter (in)Inside Diameter (in)Thickness (in)Free Height (in)Material
MU094-00400.2250.1100.00400.0471074 through 1095 Carbon Steel
MU094-00500.2420.1100.00500.0401074 through 1095 Carbon Steel
MU125-00400.2450.1350.00400.0491074 through 1095 Carbon Steel
MU125-00880.3070.1350.00880.0341074 through 1095 Carbon Steel
MU125-00800.3020.1380.00800.0501074 through 1095 Carbon Steel
MU125-01500.2770.1380.00500.0551074 through 1095 Carbon Steel
MU156-01000.3670.1640.01000.0431074 through 1095 Carbon Steel
MU156-01210.4230.1640.01200.0471074 through 1095 Carbon Steel
MU164-00500.3220.1740.00500.0641074 through 1095 Carbon Steel
MU164-01130.3700.1740.01130.0391074 through 1095 Carbon Steel
MU190-00900.3700.2000.00900.0471074 through 1095 Carbon Steel
MU190-01130.4230.2000.01130.0471074 through 1095 Carbon Steel
MU190-01400.4230.2000.01400.0431074 through 1095 Carbon Steel
MU190-00500.3220.2030.00500.0531074 through 1095 Carbon Steel
MU203-01500.4840.2160.01500.0501074 through 1095 Carbon Steel
MU216-01200.4900.2310.01200.0571074 through 1095 Carbon Steel
MU216-01500.4900.2310.01500.0501074 through 1095 Carbon Steel
MU250-00750.4900.2650.00750.0911074 through 1095 Carbon Steel
MU250-01000.4840.2650.01000.0621074 through 1095 Carbon Steel
MU250-01100.4900.2650.01100.0631074 through 1095 Carbon Steel
MU250-01450.5510.2650.01450.0601074 through 1095 Carbon Steel
MU250-01850.5510.2650.01850.0521074 through 1095 Carbon Steel
MU250-00650.4230.2690.00650.0701074 through 1095 Carbon Steel
MU250-00820.4230.2690.00820.0551074 through 1095 Carbon Steel
MU281-01200.5510.2960.01200.0701074 through 1095 Carbon Steel
