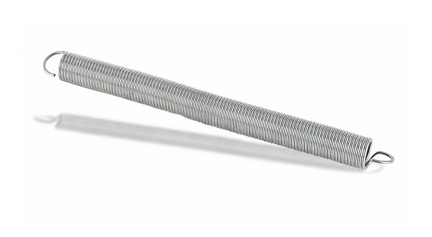

Heavy Duty Extension

Part# : 893C

Gardner Heavy Duty Extension Springs offer large loads in low cycling applications. Available in MBHD (Zinc Plated) Carbon Steel and 301 Stainless Steel.

Product Details

Features in mm
Part Number 893C 893C
Outside Diameter 1.000 in 25.400 mm
Wire Diameter 0.1055 in 2.680 mm
Rate 2.50 lbs/in 0.44 N/mm
Overall Length 12.000 in 304.800 mm
Extended Length 18.3639 in 466.443 m
Load @ Extended Length 23.000 lbs 102.309 N
Material Machine Hook Machine Hook
End Type HDMB HDMB
