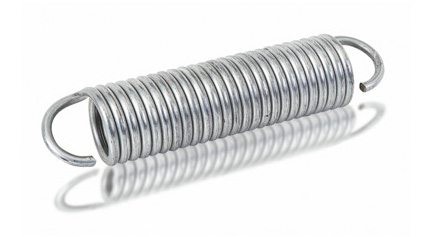

Heavy Duty Extension

Part# : 905

Gardner Heavy Duty Extension Springs offer large loads in low cycling applications. Available in MBHD (Zinc Plated) Carbon Steel and 301 Stainless Steel.

Product Details

Features in mm
Part Number 905 905
Outside Diameter 1.875 in 47.625 mm
Wire Diameter 0.2430 in 6.172 mm
Rate 47.47 lbs/in 8.31 N/mm
Overall Length 8.750 in 222.250 mm
Extended Length 11.840 in 300.736 m
Load @ Extended Length 204.000 lbs 907.437 N
Material Machine Hook Machine Hook
End Type HDMB HDMB
