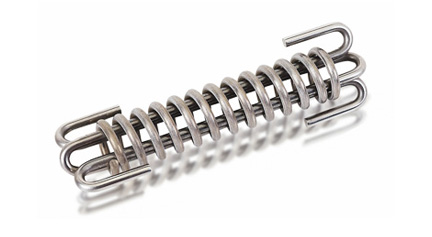

Safety Drawbar Extension

Part# : 377-SS

Drawbar Extension Springs are ideal for tensioning applications such as fences or gates, and also function as shock absorbers in intermittent load applications or for marine vessel mooring. Drawbars allow compression springs to function as extension springs, preventing hyper-extension while enabling springs to be securely attached to load sources and anchors, eliminating the possibility of slip-off during loading or use. Available in Zinc Plated MNHD and 301 Stainless Steel.

Product Details

Features in mm
Part Number 377-SS 377-SS
Outside Diameter 1.375 in 34.93 mm
Wire Diameter 0.21 in 5.26 mm
Rate 145.00 lbs/in 25.52 N/mm
Overall Length 8.75 in 222.25 mm
Deflection 1.35 in 34.29 mm
Load @ Deflection 195.75 in 870.70 mm
Material 302 Stainless lbs 302 Stainless N
Finish Plain Plain
