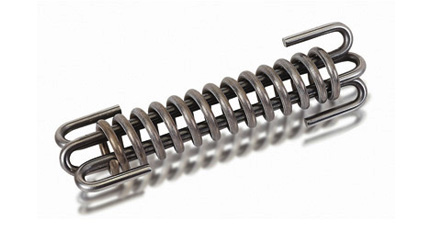

Safety Drawbar Extension

Part# : 874C

Drawbar Extension Springs are ideal for tensioning applications such as fences or gates, and also function as shock absorbers in intermittent load applications or for marine vessel mooring. Drawbars allow compression springs to function as extension springs, preventing hyper-extension while enabling springs to be securely attached to load sources and anchors, eliminating the possibility of slip-off during loading or use. Available in Zinc Plated MNHD and 301 Stainless Steel.

Product Details

Features in mm
Part Number 874C 874C
Outside Diameter 1.746 in 44.35 mm
Wire Diameter 0.15 in 3.76 mm
Rate 13.52 lbs/in 2.38 N/mm
Overall Length 8.50 in 215.90 mm
Deflection 4.00 in 101.60 mm
Load @ Deflection 54.08 in 240.55 mm
Material HDMB lbs HDMB N
Finish Zinc Plated/Galv Zinc Plated/Galv
