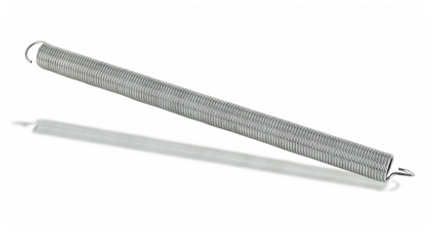

Screen Door and Gate Springs

Part# : GSD-8

Gardner Screen Door Springs may be used as replacement springs for interior or exterior screen doors and other lightweight doors. These parts are also used to assist with the closing of interior warehouse doors. GSD-8 is designed for exterior or interior gates. GS-210 and GS-310 have adjustable lengths. Drawbars allow compression springs to function as extension springs, preventing hyper-extension while enabling springs to be securely attached to load sources and anchors, eliminating the possibility of slip-off during loading or use. Available in Zinc Plated MNHD and 301 Stainless Steel.

Product Details

Features in mm
Part Number GSD-8 GSD-8
Outside Diameter 1.035 in 26.289 mm
Wire Diameter 0.1055 in 2.680 mm
Rate 1.55 lbs/in 0.27 N/mm
Overall Length 16.500 in 419.100 mm
Extended Length 33.5000 in 850.900 mm
Load @ Extended Length 33.028 lbs 146.916 N
Material HDMB HDMB
End Type Machine Hook Machine Hook
